Tools

A tool is something a sub-agent’s model can call during a run. Each sub-agent lists its tools under tools in the agent config. This page lists every tool type, its fields, guards, the built-in tools every sub-agent has, and the errors a tool config can be refused with. servflowai resource agent schema prints the same shapes as JSON Schema. To attach a tool in the dashboard, see Add a tool to an agent.

Fields every tool has

Key	Dashboard label	Type	Required	Description
`type`	chosen under Add a tool…	string	Yes	One of `action`, `mcp`, `agent`, `agent_task`.
`name`	Display name	string	Yes for `action`, `agent`, and `agent_task`	The name the model calls the tool by. Two tools on one sub-agent with the same name replace each other.
`description`	When to use	string	No	Shown to the model as the tool description.
`params`	Additional inputs	string list	No	Inputs the model is asked for on every call. Each name holds letters, digits, `_`, or `-`. Not allowed on `agent_task`.
`guards`	Guards	list of guards	No	Conditions on the request that must all pass before the tool runs.
`actionConfig`, `mcpConfig`, `agentConfig`, `agentTaskConfig`	the dialog’s middle section	object	The one that matches `type`	The type’s own fields, described below.

In the dashboard, a tool is edited in one dialog with three sections: Tool holds name and description, the middle section holds the type’s own fields, and Guards holds guards.

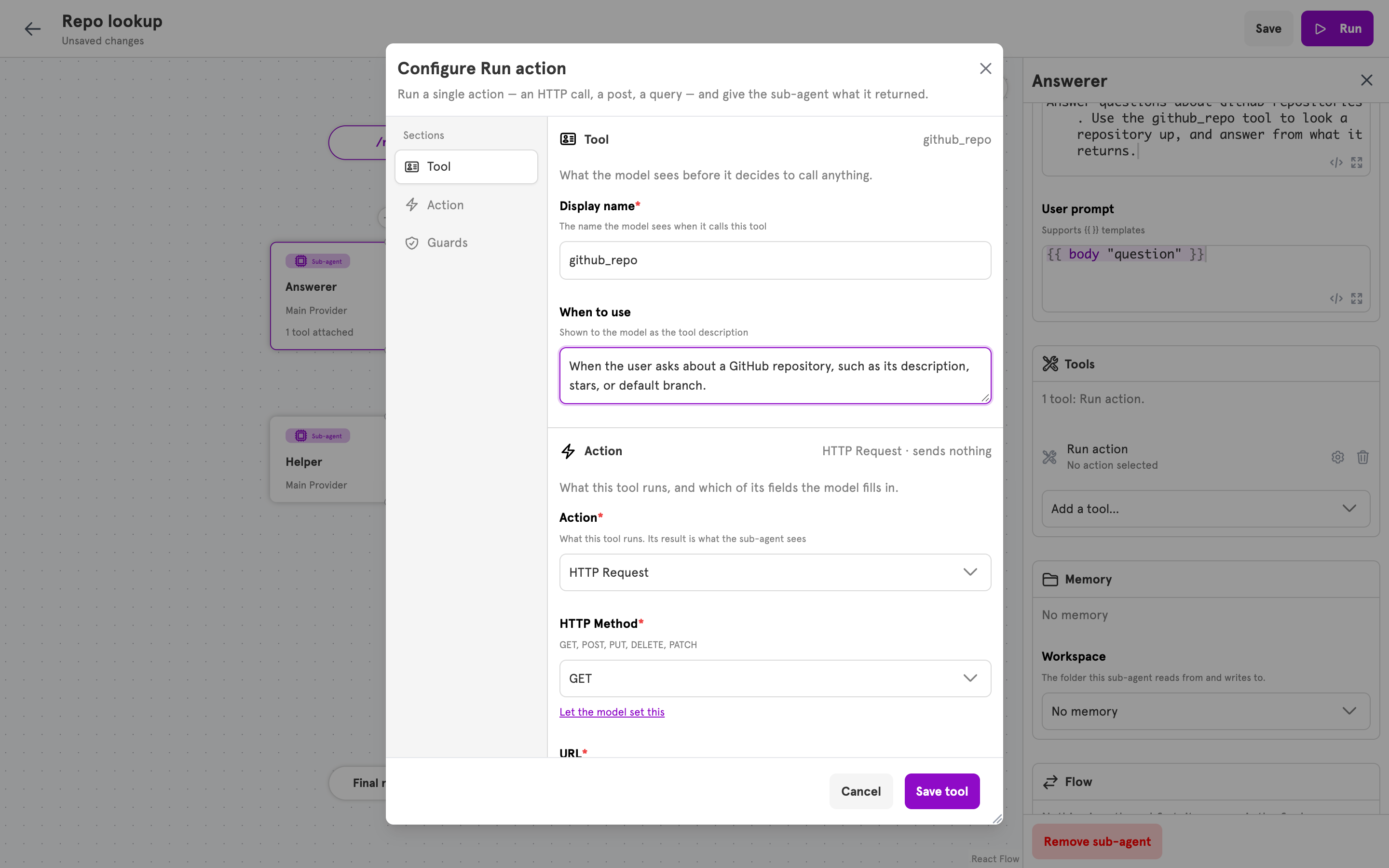

The tool dialog for an action tool, with the Tool, Action, and Guards sections listed on its left edge

Types

`type`	Dashboard label	Config	What the model sends	What comes back
`action`	Run action	`actionConfig`	The fields handed to it, and `params`	What the action returned.
`mcp`	MCP server	`mcpConfig`	What each allowed tool declares	The server’s reply.
`agent`	Call sub-agent	`agentConfig`	`params`	The called sub-agent’s reply.
`agent_task`	Agent Task Tool	`agentTaskConfig`	`instruction`	Nothing. The task runs on its own.

action

Runs one action when the model calls the tool. The action is not a step in the agent’s flow. It is built and run for the call, and its result is the tool result.

Key	Dashboard label	Type	Required	Description
`actionConfig.type`	Action	string	Yes	An action type, such as `http`. Every registered action except `parallel`, `stub`, and `agent`. `servflowai resource action list` prints them. The dashboard’s list also shows Save Data, which the server does not register, so a tool that names it is refused.
`actionConfig.config`	the action’s fields	map of field to field value	No	One entry per field of the action. `servflowai resource action describe <type>` prints an action’s fields.

Each field value is an object with two keys.

Key	Type	Description
`type`	`raw` or `param`	`raw`: you set the value. `param`: the model fills the field when it calls. In the dashboard, Let the model set this and Set a fixed value instead switch between the two.
`value`	any	For `raw`, the value, in the type the action declares for the field. A string is a template, resolved on every call. For `param`, the name of the input the model sends. Empty means the field’s own key.

Inputs the model is asked for:

Every name in params, in order, then every field of type param, then every tool_param "<name>" call found inside a raw string value.
An input that fills a field is required when the action declares any field it fills as required. An input that comes only from params or from a tool_param call is always required.
An input that fills a select field is described to the model with the field’s allowed values.
Every input reaches the action as a string. A template reads it with {{ tool_param "<name>" }}.

In the dashboard, a field that takes an integration, a boolean, or a structured value has no Let the model set this link. A structured field, such as HTTP Request’s Headers, is not editable there and is set from a file.

tools:
  - type: action
    name: github_repo
    description: When the user asks about a GitHub repository, such as its description, stars, or default branch.
    params:
      - repo
    actionConfig:
      type: http
      config:
        method:
          type: raw
          value: GET
        url:
          type: raw
          value: 'https://api.github.com/repos/{{ tool_param "repo" }}'
    guards:
      - name: pro_plan_only
        expression: '{{ eq (body "plan") "pro" }}'

mcp

Offers the model tools from a Model Context Protocol server. Each name in toolsList becomes one tool, with the name, description, and inputs the server declares for it.

Key	Dashboard label	Type	Required	Description
`mcpConfig.endpoint`	Server endpoint	string	Yes	The server’s URL.
`mcpConfig.toolsList`	Allowed tools	string list	Yes, at least one	The server’s tools that are offered to the model. An empty list offers nothing and is refused. A tool the server adds later is not offered until it is listed.
`mcpConfig.token`	Access token	object	No	Where the bearer token comes from. Exactly one of `integrationId`, `secretId`, or `token`.
`mcpConfig.token.integrationId`	Integration	string	No	A stored integration connected through OAuth, such as `notion_mcp`. Its token is sent.
`mcpConfig.token.secretId`	Secret	string	No	The name of a stored secret. Its value is sent.
`mcpConfig.token.token`	Token	string	No	The token itself, stored in the config as typed.
`mcpConfig.headers`	not in the dashboard	map of string to string	No	Headers sent to the server.

The token is sent as the Authorization header when the server’s tools are listed and when one is called. name and description are not used, because the server supplies its own. Guards on an mcp tool cover every name in toolsList.

agent

Calls another sub-agent of the same agent. The called sub-agent runs with its own prompts, and its reply is the tool result.

Key	Dashboard label	Type	Required	Description
`agentConfig.id`	Sub-agent	string	Yes	The key of a sub-agent under `agents` in the same config.

Each name in params is declared to the model as a required string, and the called sub-agent’s prompts read it with {{ tool_param "<name>" }}. The dashboard sets no params, so a tool created there asks the model for nothing.

agent_task

Starts another stored agent as a task of its own. The tool returns as soon as the task has started. Nothing the other agent says comes back, and the task runs in its own conversation thread.

Key	Dashboard label	Type	Required	Description
`agentTaskConfig.id`	Agent	string	Yes	The `config_id` of an enabled agent that is entered by a trigger, scheduled or not. An agent can name itself.

The model sends one input, instruction. The other agent reads it as {{ input "instruction" }}. params must be empty.

Guards

A guard is a condition checked before every call of the tool it is on. It is evaluated against the request that started the run: what the entry delivered, and the output of context steps that ran before the sub-agent. It never reads the inputs the model sent. Every guard on a tool has to pass.

Key	Dashboard label	Type	Required	Description
`name`	Guard name	string	No	Names the guard in traces and in the refusal the model receives. An unnamed guard is named `<tool name>/<position>`, counting from 0.
`expression`	Allow the call when	string	One of `expression` or `structure`	A template that has to render `true`, such as `{{ eq (body "plan") "pro" }}`. See Dynamic content.
`structure`	not editable in the dashboard	list of condition groups	One of `expression` or `structure`	The structured form of a condition. Conditions in a group are joined with AND, and groups with OR. See Conditionals. The dashboard lists a structured guard and keeps it as it is.
`onTrue`, `onFalse`	none	string	Must be empty	A guard decides whether the tool runs. It does not route to a step.

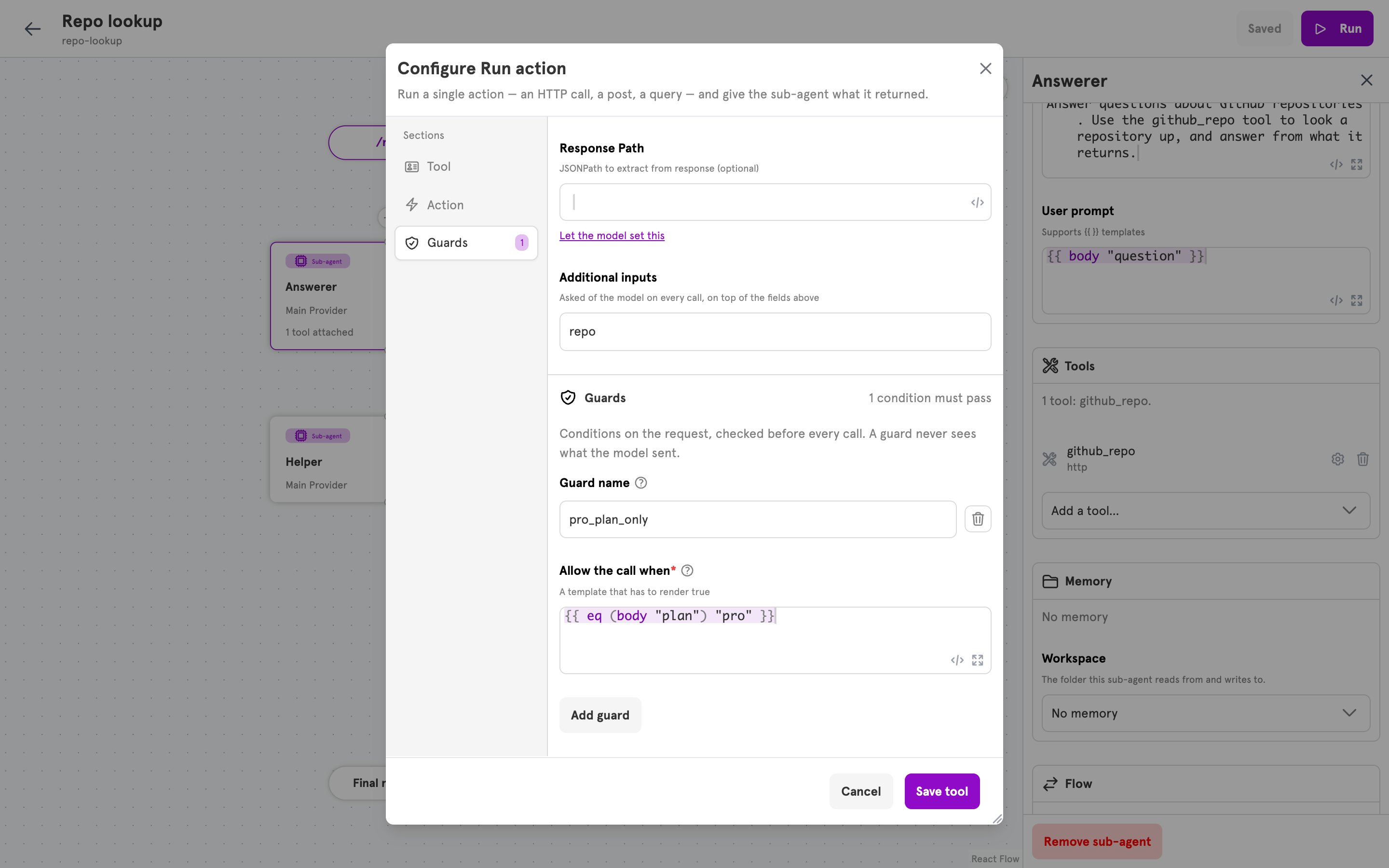

The Guards section of the tool dialog, with the Guard name and Allow the call when fields filled in

When a guard does not pass, or cannot be evaluated, the tool does not run. The model receives tool "<tool name>" is not allowed: guard "<guard name>" did not pass as the tool result, and the run’s log reads “tool call denied by guard”.

Built-in tools

Every sub-agent has three file tools, with nothing to configure. They work in the sub-agent’s workspace, set by workspaceID on the sub-agent, or Workspace under Memory in the dashboard. A sub-agent with no workspace still has them, and a call returns an error saying there is no workspace. A tool you attach under the same name replaces the built-in one.

Tool	Inputs	Description
`read_file`	`path`	Reads a file and returns its contents.
`write_file`	`path`, `content`	Writes a file, creating it or replacing what is there.
`list_files`	`path`, optional	Lists the files and folders one level under `path`. Without `path`, lists the workspace root.

Paths are relative to the workspace root. A path that does not exist, or that points outside the workspace, returns a message to the model instead of an error.

Errors

A config is checked when it is created or updated, in the dashboard, the CLI, and the MCP server. Each message is prefixed with where the tool is, such as agent "answer" tool 0:.

Message	Cause
`tool type is required`	`type` is empty.
`unknown tool type "<type>"`	`type` is not one of the four types.
`action tool requires a name`	An `action` tool has no `name`. The same check applies to `agent` and `agent_task` tools.
`action tool requires an action type`	`actionConfig.type` is empty.
`names unknown action type "<type>"`	`actionConfig.type` is not an action this server registers.
`tool parameter "<name>" must be letters, digits, underscores or hyphens`	A `params` entry holds another character.
`field "<field>" has unknown kind "<kind>", expected "raw" or "param"`	A field value’s `type` is neither `raw` nor `param`.
`field "<field>" is filled by the model, so its value names a parameter, but it holds <type>`	A `param` field’s `value` is not a string.
`field "<field>" takes parameter "<name>", which must be letters, digits, underscores or hyphens`	A `param` field names an input with another character.
`mcp tool requires an endpoint`	`mcpConfig.endpoint` is empty.
`mcp tool requires at least one tool name`	`mcpConfig.toolsList` is empty.
`mcp tool token needs exactly one of integrationId, secretId, or token`	`mcpConfig.token` sets none of the three, or more than one.
`references unknown agent "<id>"`	`agentConfig.id` is not a sub-agent of the same config.
`agent task tool requires the id of the agent it starts`	`agentTaskConfig.id` is empty.
`agent task tool takes no parameters: the model supplies only the instruction`	An `agent_task` tool has `params`.
`guard "<name>" routes to a step, but a guard only decides whether the tool runs`	A guard sets `onTrue` or `onFalse`.
`guard "<name>": …`	The guard has neither an expression nor a structure, or its structure names a function that does not exist.

Add a tool to an agent

Attach a tool in the dashboard, test it, and guard it.

Available actions

The actions an action tool can run.

Dynamic content

Template functions such as tool_param, body, and header.

Conditionals

The structured form a guard can take, and its comparison functions.
